SealingPartial technical record
SP358Graphite Products

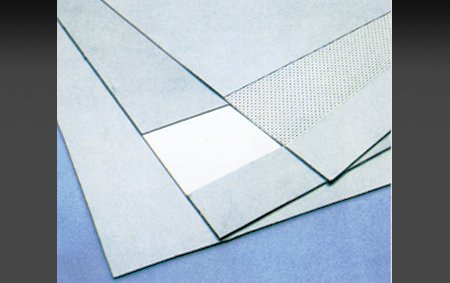

Metal Reinforced Graphite Sheet
Metal-reinforced graphite sheet made by bonding flexible graphite around a stainless steel plate or screen.
This product record is currently shown in English until its technical translation has been reviewed.
Product details
We confirm specifications and available configurations when preparing each quotation.
Graphite composite sheet with compression, rebound, corrosion resistance and resistance to high and low temperatures. Uses include reinforced graphite gaskets, engine-head gaskets and static sealing.
- Material
- Flexible graphite with stainless steel plate or screen reinforcement
- Dimensions
- Thicknesses 1.2, 1.6, 2.0 and 3.2 mm; sheets 1000 x 1000 or 500 x 1000 mm
- Product code
- SP358
- A-series models
- PL-120A, PL-160A, PL-200A and PL-320A
- A-series sizes
- 1.2, 1.6, 2.0 or 3.2 mm x 1000 x 1000 mm
- B-series models
- PL-120B, PL-160B, PL-200B and PL-320B
- B-series sizes
- 1.2, 1.6, 2.0 or 3.2 mm x 500 x 1000 mm
For an accurate quotation
Include the operating and delivery requirements that affect product selection.
When available, attach a specification sheet, drawing or reference sample details in your message.
01Material or grade
Required construction, coating, compound or reference grade.
02Dimensions and format
Thickness, width, length, diameter, weight or finished format.
03Operating conditions
Temperature, pressure, media, movement and service environment.
04Quantity and destination
Required quantity, delivery country and requested timing.
05Standards and documents
Applicable standard, test report, material certificate or origin document.
