REJ351Rubber Expansion Joints

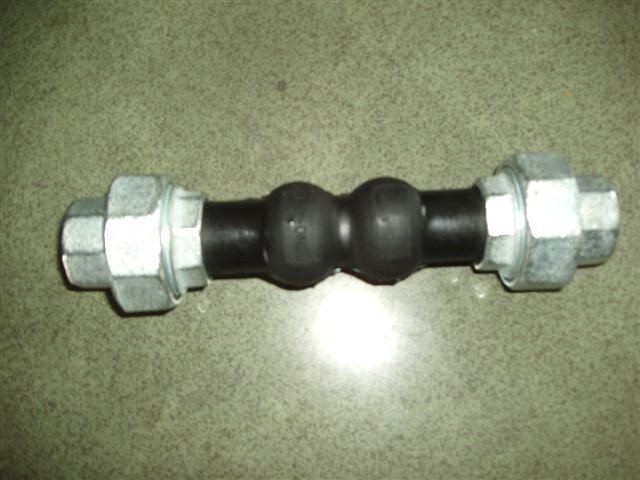

Double Sphere Screwed Rubber Expansion Joints
Contact us to confirm specifications, documentation and current availability for Double Sphere Screwed Rubber Expansion Joints.
This product record is currently shown in English until its technical translation has been reviewed.
Product details
We confirm specifications and available configurations when preparing each quotation.
Double Sphere Screwed Rubber Expansion Joints Table of Materials Serial No. Portion Material 1 Main body Polarized rubber 2 Lining Nylon cord fabric 3 Frame Hard steel wire 4 Union Forgeable cast iron Technical Conditions Parameter 3/4" --- 3" Working pressure (MPa) 1.0 Bursting Pressure (MPa 3.0 Vacuity (mmHg) 400 Table of Nominal Core Diameter of Pipe,Axial displacement,and Lateral Displacement Nominal core dia.DN L Value (mm) Axial displacement (mm) Lateral displacement (mm) (in.) Stretch(mm) Compression 15 1/2 200 6 22 45 20 3/4 200 6 22 45 25 1 200 6 22 45 32 1 1/4 200 6 22 45 40 1 1/2 200 6 22 45 50 2 200 6 22 38 65 2 1/2 200 240 6 22 38 80 3 200 240 6 22 38
- Product code
- REJ351
- Catalogue category
- Rubber Expansion Joints
- Serial No.
- Portion | Material
- 1
- Main body | Polarized rubber
- 2
- Lining | Nylon cord fabric
- 3
- Frame | Hard steel wire
- 4
- Union | Forgeable cast iron
- Parameter
- 3/4" --- 3"
- Working pressure (MPa)
- 1.0
- Bursting Pressure (MPa
- 3.0
- Vacuity (mmHg)
- 400
- Nominal core dia.DN
- L Value (mm) | Axial displacement (mm) | Lateral displacement
- (mm)
- (in.) | Stretch(mm) | Compression
- 15
- 1/2 | 200 | 6 | 22 | 45
- 20
- 3/4 | 200 | 6 | 22 | 45
- 25
- 1 | 200 | 6 | 22 | 45
For an accurate quotation
Include the operating and delivery requirements that affect product selection.
When available, attach a specification sheet, drawing or reference sample details in your message.
01Material or grade
Required construction, coating, compound or reference grade.
02Dimensions and format
Thickness, width, length, diameter, weight or finished format.
03Operating conditions
Temperature, pressure, media, movement and service environment.
04Quantity and destination
Required quantity, delivery country and requested timing.
05Standards and documents
Applicable standard, test report, material certificate or origin document.
