REJ350Rubber Expansion Joints

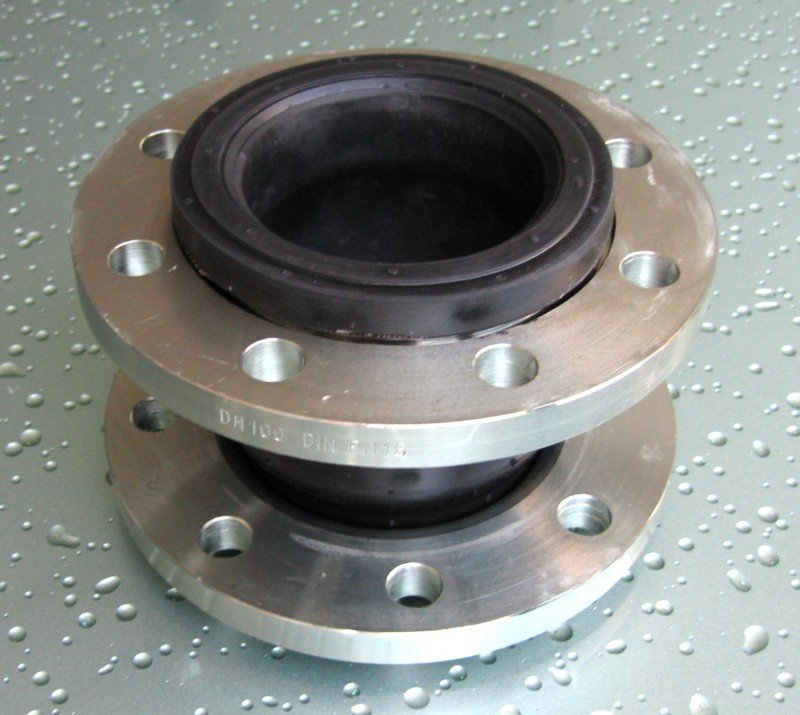

Single Sphere Rubber Expansion Joints
S-10, S-10A and S-15 single-sphere rubber expansion joints with DN32-DN500 size and pressure tiers.
This product record is currently shown in English until its technical translation has been reviewed.
Product details
We confirm specifications and available configurations when preparing each quotation.
Single-sphere flanged joint with a rubber main body, nylon cord fabric lining, hard steel wire frame and mild steel flanges. Listed working pressure is 1.6 MPa for DN32-DN300 and 1.0 MPa for DN350-DN500.
- Material
- Rubber body; nylon cord fabric; hard steel wire; mild steel flanges
- Temperature range
- -20 to +115 C
- Dimensions
- DN32-DN500 in the source technical range
- Product code
- REJ350
- Models
- S-10, S-10A and S-15
- Nominal diameter
- DN32-DN300 and DN350-DN500 source tiers
- Working pressure
- 1.6 MPa / 1.0 MPa by diameter tier
- Bursting pressure
- 4.8 MPa / 3.0 MPa by diameter tier
- Vacuum
- 750 / 500 mmHg by diameter tier
- Applicable temperature
- -20 to +115 C
- Listed media
- Air, compressed air, water, seawater, hot water and weak acid
- Deflection angle
- 15 degrees in the listed displacement table
For an accurate quotation
Include the operating and delivery requirements that affect product selection.
When available, attach a specification sheet, drawing or reference sample details in your message.
01Material or grade
Required construction, coating, compound or reference grade.
02Dimensions and format
Thickness, width, length, diameter, weight or finished format.
03Operating conditions
Temperature, pressure, media, movement and service environment.
04Quantity and destination
Required quantity, delivery country and requested timing.
05Standards and documents
Applicable standard, test report, material certificate or origin document.
