High Silica Fabric

Name: High Silica Fabric
SKU: TIP323

高硅氧纤维布

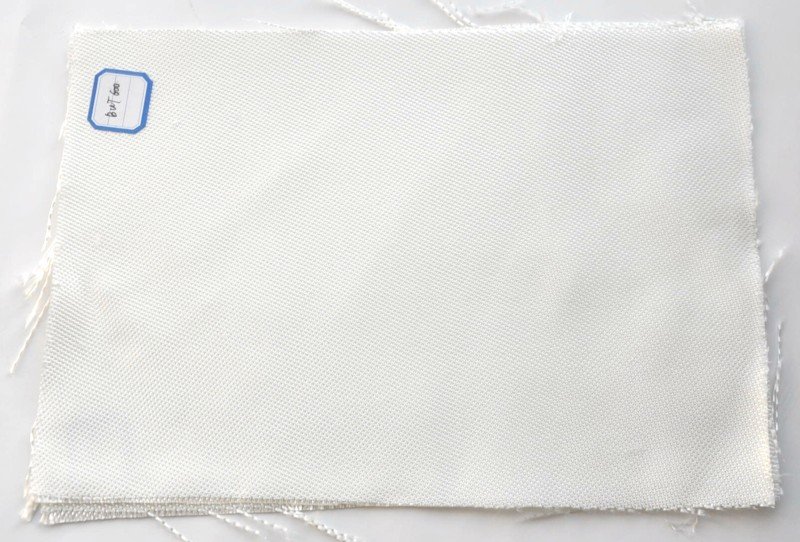

Satin high-silica fabric with SiO2 content of at least 97%, 0.6 mm thickness and 600 g/m2 weight.

Request a quote →Back to catalogue

Product details

We confirm specifications and available configurations when preparing each quotation.

Woven high-silica fabric for high-temperature insulation, with low thermal conductivity, chemical stability, electrical insulation and low thermal shrinkage.

High-temperature insulation and sealingHigh-temperature ablation barriersFire-protection clothing, curtains and blanketsHigh-temperature gas and liquid filtrationMolten-metal filtrationAutomotive and motorcycle heat shielding

Material: High-silica fiberglass
Origin: China
Temperature range: 900 C long-term; 1450 C/10 min; 1600 C/15 s; softening point 1700 C
Dimensions: Thickness 0.6 mm
Weight: 600 g/m2
Product code: TIP323
SiO2 content: >=97%
LOI: <=3%
Weave: Satin
Thickness: 0.6 mm
Weight: 600 g/m2

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
